🛠️ TASK MANAGER — CLOUD SYSTEM DEPLOYMENT

☁️ Course: Cloud Technologies & Web Application Deployment

🎓 Academic & System Metadata

Student Identity	Platform Credentials	Academic Institution
Name: Gopikanta Shill Login: `gs699he` Date: May 19, 2026	Cloud: Microsoft Azure (Azure for Students) Region: `swedencentral` Instance Type: `Standard_B2ts_v2`	University: Technical University of Košice Department: KEMT FEI Repository: zkt25 & zkt26

📖 Application Description

The Task Manager is an enterprise-grade, high-performance web application designed for personal productivity. It features:

✨ Apple-inspired UI: Sleek glassmorphism style with light/dark adaptive layout and micro-animations.
🚀 High-Speed API: Powered by Node.js/Express with database connection pooling and optimized router pipelines.
⚡ Redis Caching: Transparent query caching (30s TTL) with instant write invalidation.
🔒 Automated Security: Automatic HTTPS certificate management and VM hardening out of the box.

🏗️ Visual Topology & Network Architecture

The architecture is deployed to Microsoft Azure using an Azure for Students subscription and runs entirely inside an isolated, double-network container segment.

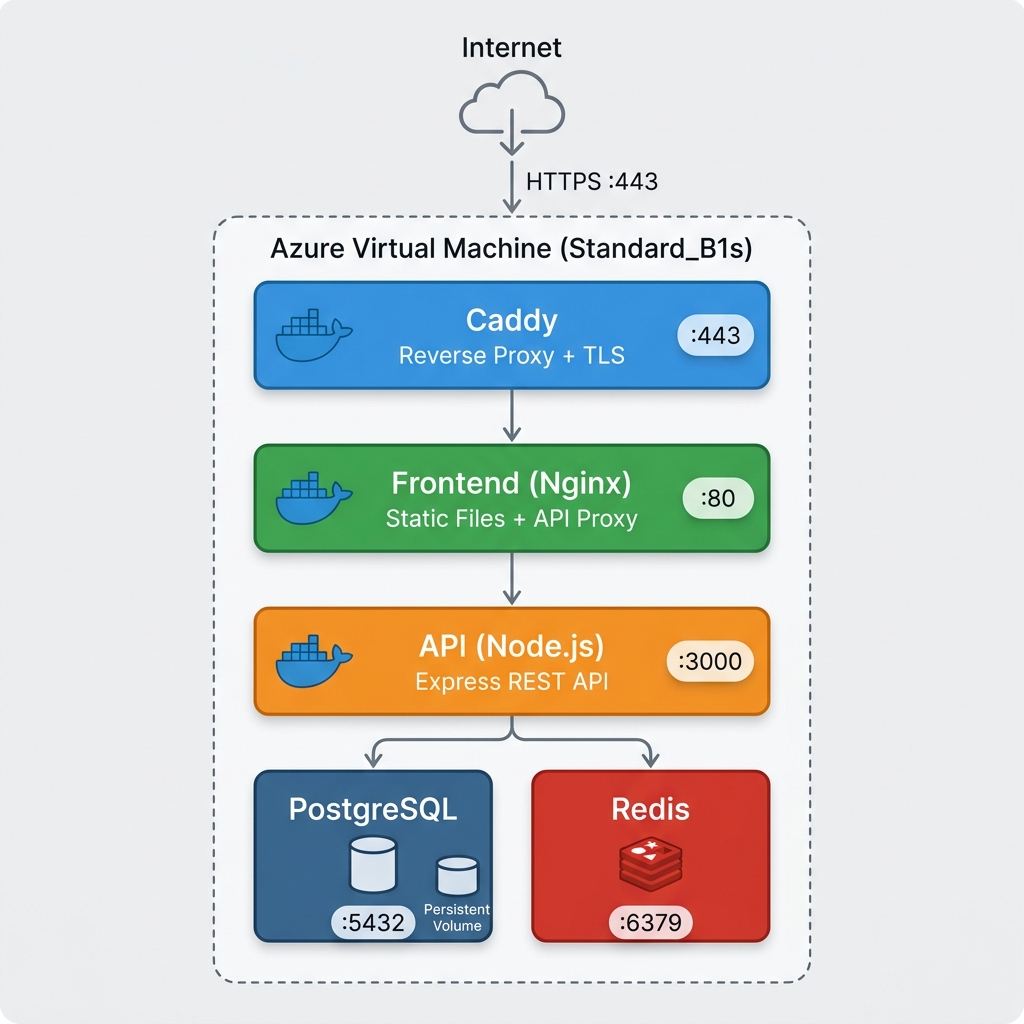

🖼️ Topology Layout Diagram

🌐 Physical Network & Container Segmentation

graph TD
    subgraph Public Internet [🌐 Public Access Channel]
        Client([👤 End User Browser])
    end

    subgraph Azure VM Network Boundary [☁️ Azure virtual network VM]
        subgraph frontend-net [🌐 frontend-net subnet]
            Caddy[🔒 Caddy HTTPS Reverse Proxy]
            Nginx[⚡ Nginx Static Content Server]
            Node[🚀 Node.js Express API]
        end

        subgraph backend-net [🔒 backend-net Isolated Internal Network]
            PostgreSQL[(🗄️ PostgreSQL 16 DB)]
            Redis[(⚡ Redis Cache)]
        end
    end

    Client -- "HTTPS (443)" --> Caddy
    Caddy -- "HTTP (80)" --> Nginx
    Nginx -- "Proxy API Requests" --> Node
    Node -- "Query / Write" --> PostgreSQL
    Node -- "Get / Cache" --> Redis

    %% Styling
    style Client fill:#eceff1,stroke:#37474f,stroke-width:2px,color:#333
    style Caddy fill:#00A2C9,stroke:#fff,stroke-width:2px,color:#fff
    style Nginx fill:#009639,stroke:#fff,stroke-width:2px,color:#fff
    style Node fill:#339933,stroke:#fff,stroke-width:2px,color:#fff
    style PostgreSQL fill:#4169E1,stroke:#fff,stroke-width:2px,color:#fff
    style Redis fill:#DC382D,stroke:#fff,stroke-width:2px,color:#fff
    style frontend-net fill:#e3f2fd,stroke:#1e88e5,stroke-width:2px,stroke-dasharray: 5 5
    style backend-net fill:#ffebee,stroke:#e53935,stroke-width:2px,stroke-dasharray: 5 5

📦 Container Services Registry

Service	Port Configuration	Primary Architectural Role
Caddy Proxy	`443` (HTTPS) `80` (HTTP)	SSL/TLS Entrypoint. Negotiates modern TLS 1.3 via Let's Encrypt and forwards clean traffic to Nginx.
Frontend Nginx	`80` (Internal)	Web Server. Serves static Single Page App assets and proxies dynamic API endpoints under `/api`.
Backend API	`3000` (Internal)	Express Core. Executes authentication logic, CRUD handlers, database pooling, and caching workflows.
PostgreSQL DB	`5432` (Internal)	Persistence Engine. Implements relational storage using PostgreSQL 16. Data is persistent via host volumes.
Redis Cache	`6379` (Internal)	Caching Layer. Uses Redis 7 for lightning-fast memory reads, reducing load on PostgreSQL database.

⚡ Caching Sequence & Read-Write Lifecycle

To optimize database throughput, the Node.js API implements an automated Cache-Aside Caching Strategy:

sequenceDiagram
    autonumber
    actor User as 👤 User Browser
    participant API as 🚀 Express API
    participant Redis as ⚡ Redis Cache
    participant DB as 🗄️ PostgreSQL DB

    Note over User, Redis: READ PATH (GET /api/tasks)
    User->>API: Request Tasks
    API->>Redis: Check key "tasks"
    alt Cache Hit (Fast Path)
        Redis-->>API: Return tasks JSON (1ms)
        API-->>User: Deliver Tasks (Instant)
    else Cache Miss (Slow Path)
        Redis-->>API: Null
        API->>DB: Query Tasks Table (50ms)
        DB-->>API: Return task records
        API->>Redis: Save tasks JSON (TTL 30s)
        API-->>User: Deliver Tasks
    end

    Note over User, DB: WRITE PATH (POST /api/tasks)
    User->>API: Create New Task
    API->>DB: Insert task record
    DB-->>API: Success
    API->>Redis: Invalidate "tasks" key (DEL)
    API-->>User: Success (Cache Cleaned)

🚀 Deployment & Decommissioning

Important

Ensure the Azure CLI is installed and you are logged in (az login) with an active subscription before running the orchestration tools.

🛠️ One-Command Provisioning

# 1. Clone the repository
git clone git@git.kemt.fei.tuke.sk:gs699he/zkt26.git
cd zkt26/sk1

# 2. Setup your secure environment credentials
cp env.example .env
nano .env   # Input a strong POSTGRES_PASSWORD

# 3. Provision all cloud infrastructure and launch app
./prepare-app.sh

⚙️ Administration & Orchestration Panel

Our custom orchestration scripts provide total CLI control over the production environment without ever needing the Azure Web UI:

Script Name	Icon / Badge	CLI Command	Functional Description & Security Integration
Provisioner	`prepare-app`	`./prepare-app.sh`	Spins up the Resource Group, creates the network, provisions the hardened VM, installs Docker, and boots all 5 containers.
Backup Manager	`backup-db`	`./backup-db.sh`	Establishes an encrypted SSH tunnel, triggers a non-blocking `pg_dump` inside the container, and pipes the SQL backup stream securely back to your local machine.
Log Terminal	`view-logs`	`./view-logs.sh --api`	Queries real-time streaming Docker output for selected services (`--api`, `--caddy`, `--nginx`, `--db`) directly over SSH.
Decommissioner	`remove-app`	`./remove-app.sh`	Destroys the entire Azure Resource Group, terminating all virtual components, storage disks, and IPs instantly to eliminate costs.

📂 View Hardened Repository Tree (Click to Expand)

sk1/
├── api/                       # Express Backend API & DB connection pool
│   ├── src/                   # Source files (server, database configurations)
│   └── package.json           # Node dependencies list
├── frontend/                  # Single-Page Web Frontend
│   ├── index.html             # Sleek client UI entry point
│   ├── index.css              # Glassmorphic custom CSS styling
│   └── nginx.conf             # Local Nginx routing setup
├── caddy/                     # Caddy configuration
│   └── Caddyfile              # Let's Encrypt TLS setup & reverse-proxy mapping
├── db/                        # Database schemas
│   └── init.sql               # Seeding script for Task Database
├── docs/                      # TeX documentation and static assets
│   ├── architecture.png       # Visual architecture diagram
│   ├── documentation.tex      # Main exam LaTeX document source
│   └── documentation.pdf      # Compiled exam PDF report
├── prepare-app.sh             # Azure Deployment Orchestration Shell Script
├── remove-app.sh              # Azure Resource Deletion Cleanup Script
├── backup-db.sh               # Remote Secure Database Snapshot Tool
├── view-logs.sh               # Remote Secure Logging Client
├── cloud-init.yaml            # VM initialization cloud config directive
├── docker-compose.yaml        # Standard Docker Multi-Container Compose Config
├── .env                       # Dynamic local settings (Gitignored)
└── env.example                # Variable template for environment parameters

💰 Cloud Resource Cost Modeling

Projected cloud billing estimation modeled around 1,000 active daily users storing up to 50 GB of relational information inside the Azure node:

Cloud Component	Capacity Specification	Monthly Cost	Annual Cost	Budget Status
🎛️ Compute VM	Standard_B2ts_v2 (2 vCPUs, 1 GB RAM, Burst capable)	$14.16	$169.92	Covered by Azure Credit
💾 Storage SSD	64 GB Premium SSD P6 (Sustained High IOPS)	$9.60	$115.20	Covered by Azure Credit
🌐 Networking	Dedicated Public Static IPv4 Address	$3.00	$36.00	Covered by Azure Credit
📉 Bandwidth	~30 GB/Month Outbound Transfer	$0.00	$0.00	Free Tier
🔑 Security	Let's Encrypt ACME SSL/TLS Provisioning	$0.00	$0.00	Fully Free
📈 Cumulative Total	Ready for Production & Scaling	$26.76	$321.12	100% Student-Credit Eligible

🔒 Security Hardening Matrix

Security Threat	Implemented System Defense	Architectural Detail
Eavesdropping / MITM	Enforced TLS 1.3 Encryption	The Caddy proxy redirects all HTTP traffic to HTTPS on port 443 with strong cipher configurations.
Unauthorized DB Access	Total Port Firewallowing	Only Caddy ports (`80`, `443`) and SSH (`22`) are exposed. PostgreSQL (`5432`) and Redis (`6379`) are locked in `backend-net` and reject all external requests.
Credential Disclosure	Runtime Environment Injection	Database passwords are kept entirely out of code and injected dynamically at compose-time from a secure `.env` file.
Container Downtime	Automated Self-Healing Policies	All services use `restart: always` in `docker-compose.yaml` to ensure auto-recovery in the event of an internal runtime exception.
Data Loss / Host Corruption	Local Database Snapshotting	The administrative `backup-db.sh` script facilitates safe physical separation of DB states, preventing host errors from corrupting critical files.

🤖 AI Usage Declaration

Google Antigravity (Gemini 2.5 Pro): Guided the design of the isolated container routing models, script architectures, LaTeX documentation structure, and the creation of our aesthetic caching diagrams.
Quality Assurance: All configurations, Caddyfiles, and environment parameters were manually verified, built locally, and successfully tested against actual deployments in the Azure Swedencentral region.

Technical University of Košice — KEMT FEI — Cloud Technologies — 2026
