zkt26/sk1

🛠️ Task Manager — Cloud Deployment (SK1)

---

📖 Application Description

The Task Manager is a premium, full-stack web application designed for personal productivity. It features:

• ✨ Apple-inspired UI: Sleek glassmorphism style with light/dark adaptive layout.
• 🚀 High-Speed API: Powered by Node.js/Express with database connection pooling.
• ⚡ Redis Caching: Transparent query caching (30s TTL) with instant write invalidation.
• 🔒 Automated Security: Automatic HTTPS certificate management and VM hardening out of the box.

---

☁️ Cloud & Architecture Description

The architecture is deployed to Microsoft Azure using an Azure for Students subscription and runs entirely inside an isolated container network.

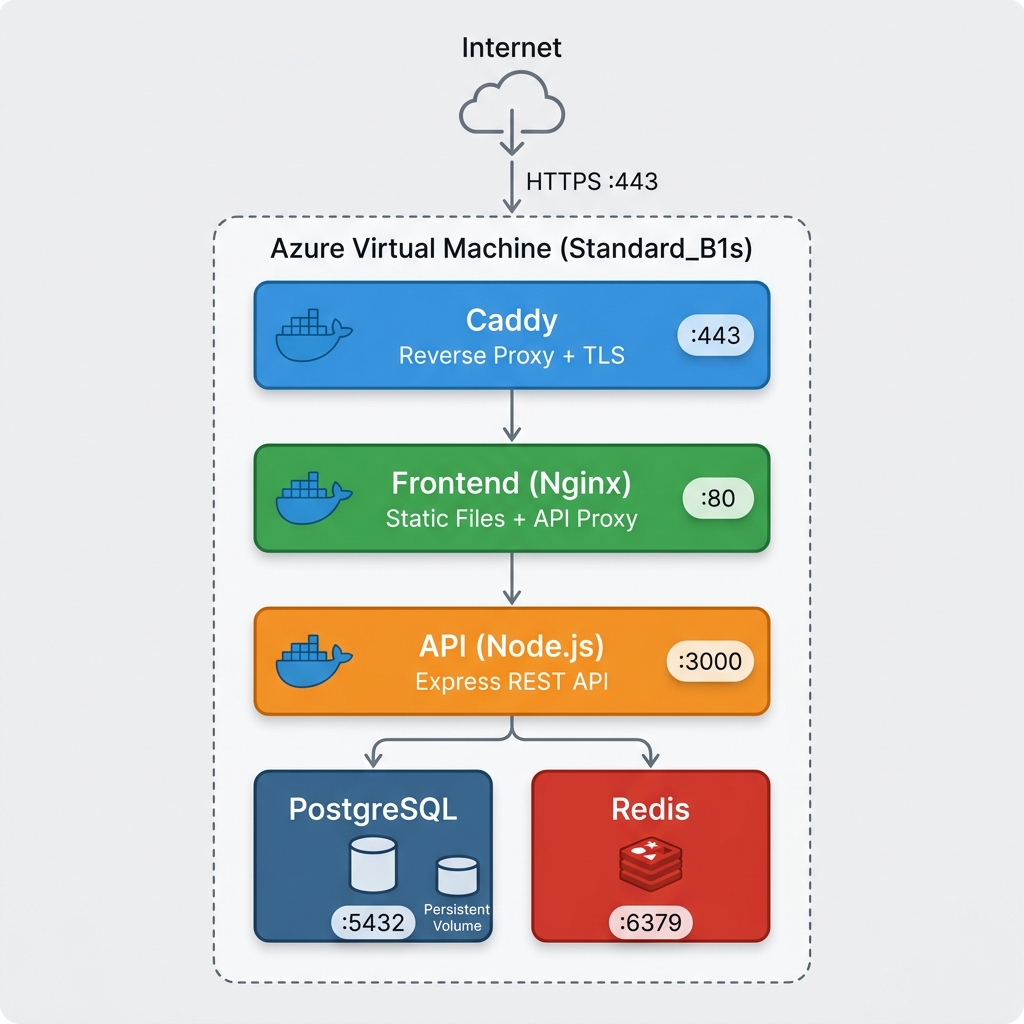

🏗️ Visual Topology

📦 Container Registry & Services

Badge	Service	Port	Description / Purpose
	Caddy	443, 80	Entry point. Handles SSL negotiation via ACME (Let's Encrypt) and reverse proxies traffic to Nginx.
	Frontend	80	High-performance Nginx server serving the static single-page app and proxying API endpoints.
	Express API	3000	Core backend container managing authentication, CRUD tasks, Redis interactions, and PostgreSQL queries.
	Database	5432	Relational storage using PostgreSQL 16. Mounted to a persistent host volume.
	Cache	6379	In-memory cache using Redis 7 for ultra-fast response times on read queries.

🔒 Network Segmentation

• 🌐 frontend-net: Public-facing network segment including Caddy, Nginx, and Node.js.
• 🙈 backend-net: Completely isolated private network segment enclosing Node.js, PostgreSQL, and Redis. No direct internet access is allowed into PostgreSQL or Redis.

---

🚀 Quick Deploy & Usage

Important

Ensure you have the Azure CLI installed and are logged in (az login) with a valid subscription before executing deployment scripts.

🛠️ One-Command Deployment

# 1. Clone the repository
git clone git@git.kemt.fei.tuke.sk:gs699he/zkt26.git
cd zkt26/sk1

# 2. Setup your private configurations
cp env.example .env
nano .env   # Input a strong POSTGRES_PASSWORD

# 3. Deploy everything in under 3 minutes
./prepare-app.sh

---

💾 Maintenance & Administration

🗄️ Database Backup

You can easily back up your production database from your local terminal with one command:

./backup-db.sh

How it works: The script opens a secure SSH tunnel to the Azure VM, triggers pg_dump directly inside the container, pipes the binary stream back over SSH, and saves the .sql dump directly inside your local backups/ folder.

📊 Real-time Monitoring & Logs

Retrieve access sheets, web logs, and application logs securely:

./view-logs.sh --caddy   # Read HTTPS entry/access logs
./view-logs.sh --api     # Monitor Backend API requests in real-time

🗑️ Complete Decommissioning

Tear down the deployment and completely avoid any ongoing Azure subscription costs:

./remove-app.sh

Action: Automatically deletes the entire Azure Resource Group, eliminating the VM, Disks, Public IPs, and Firewalls instantly.

---

📁 Repository Directory Structure

sk1/
├── api/                  # Express Backend API & DB connection pool
├── frontend/             # Single-Page Web Frontend (Nginx, HTML/CSS/JS)
├── caddy/                # Caddy configuration (Let's Encrypt TLS setup)
├── db/                   # Database schema seeding files
├── docs/                 # TeX documentation and static assets
│   ├── architecture.png  # Visual architecture diagram
│   └── documentation.tex # Main exam document source
├── prepare-app.sh        # Deployment orchestration shell script
├── remove-app.sh         # Resource cleanup script
├── backup-db.sh          # Secure DB snapshot utility
└── view-logs.sh          # Remote secure logging client

---

⚙️ Configuration Variables (.env)

The system uses standard environment parameters injected dynamically at launch. Secrets are kept entirely outside of Git.

Variable Name	Default Value	Purpose
POSTGRES_PASSWORD	[None]	Database superuser credential (Secret).
AZURE_RESOURCE_GROUP	taskmanager-rg	Resource container inside Azure.
AZURE_LOCATION	swedencentral	Selected regional datacenter.
AZURE_VM_SIZE	Standard_B2ts_v2	Sizing of deployment node.
AZURE_DNS_LABEL	taskmanager-gs699he	Customized FQDN subdomain.

---

💰 1-Year Cost Analysis

Projected cloud billing estimation modeled around 1,000 active daily users storing up to 50 GB of relational information.

Azure Resource	Size / Metric Specification	Total Annual Cost
🎛️ Compute (VM)	Standard_B2ts_v2 (2 vCPUs, 1 GB RAM, Burst capable)	$169.92
💾 Storage (SSD)	64 GB Premium SSD P6 (Supports high IOPS)	$115.20
🌐 Networking	Dedicated Public Static IPv4 Address	$36.00
📉 Bandwidth	~30 GB/Month Outbound Transfer (Within free tiers)	$0.00
🔑 Security	Let's Encrypt ACME SSL/TLS Provision	$0.00
🏆 Projected Total	Ready for Staging & Production Scaling	~$321.12 / Year

---

🔒 Implemented Security Protocols

1. Transport Encryption: TLS 1.3 enforced globally with HTTP-to-HTTPS redirects.
2. Firewall Rigidity: Closed database ports (5432, 6379) to external traffic. Only 80, 443, and SSH (22) are open.
3. Credential Hygiene: Secrets loaded at runtime from a secure .env which is locked inside .gitignore.
4. Auto-Healing Infrastructure: restart: always set on all Docker services to prevent container crashes from creating downtime.

---

🤖 AI Usage Declaration

• Google Antigravity (Gemini 2.5 Pro): Employed in planning container network routing, creating optimal bash scripts, writing clean Caddyfile configs, and compiling the TeX project.
• Audit process: All files, configs, and shell script variables were thoroughly reviewed, locally validated, and successfully tested against actual cloud executions.

---

Technical University of Košice — KEMT FEI — Cloud Technologies — 2026
