Task Manager — Cloud Deployment (SK1)

🌐 Live Application: https://taskmanager-gs699he.swedencentral.cloudapp.azure.com

📖 Application Description

The Task Manager is a full-stack web application designed for creating, tracking, updating, and deleting tasks. It is intended for individuals needing a responsive, simple interface for personal productivity. It features a modern Single-Page Application frontend, a Node.js REST API backend, and uses PostgreSQL for reliable data storage and Redis for high-speed caching.

☁️ Cloud & Architecture Description

The application is deployed to Microsoft Azure using the "Azure for Students" subscription.

• Public Cloud: Microsoft Azure (deployed in the swedencentral region).
• Cloud Services: Azure Virtual Machines (Standard_B2ts_v2), Azure Public IP Addresses, Azure Network Security Groups (allowing ports 80/443/22).
• Docker Objects: Docker Compose orchestration, 5 distinct Docker containers.
• Persistent Volumes: Two Docker named volumes (pgdata and redisdata) to ensure data is preserved across container restarts. caddy_data and caddy_config for TLS certificates.
• Databases: PostgreSQL 16 serves as the primary relational database, and Redis 7 acts as an in-memory cache.

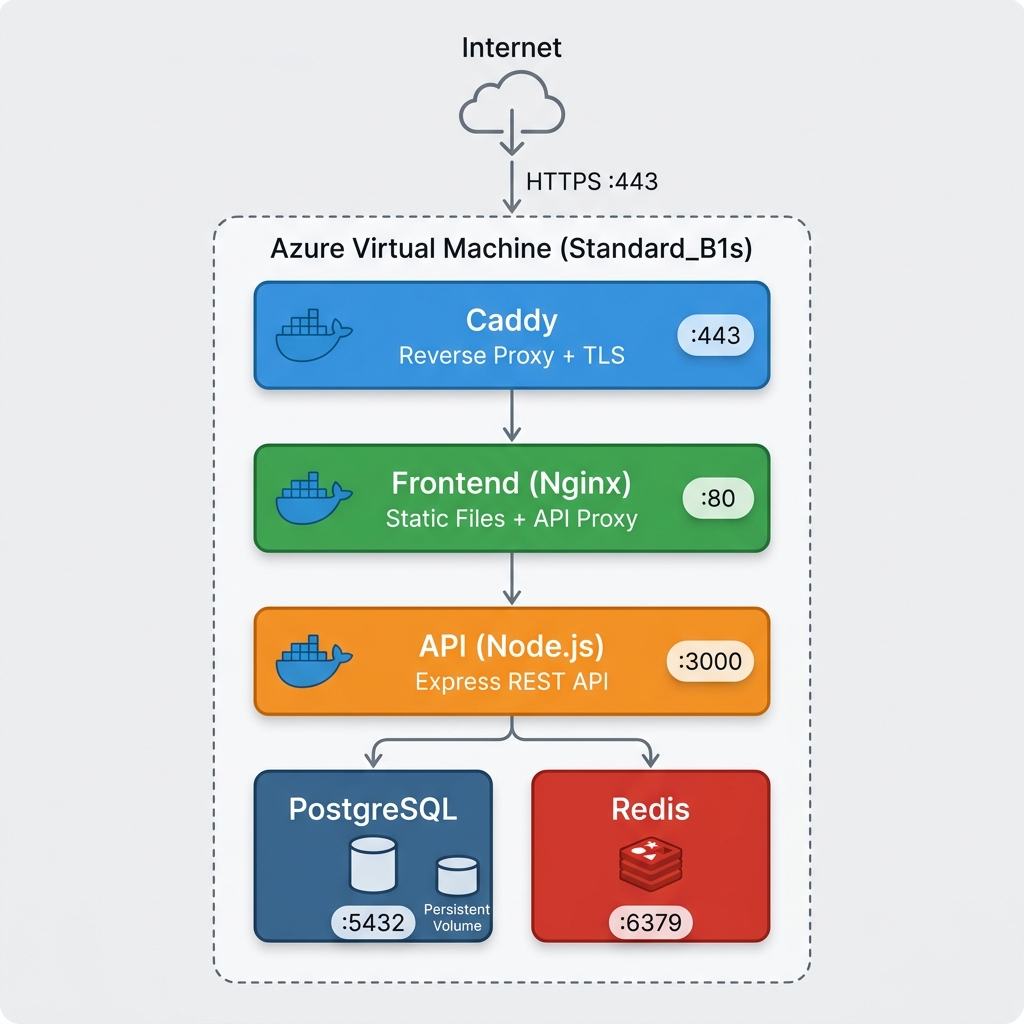

🏗️ Architecture

Container	Image	Port	Purpose
Caddy	caddy:2-alpine	443, 80	Reverse proxy + automatic HTTPS (Let's Encrypt)
Frontend	nginx:alpine	80	Static files + API reverse proxy
API	node:20-alpine	3000	Express REST API (CRUD)
PostgreSQL	postgres:16-alpine	5432	Persistent relational database
Redis	redis:7-alpine	6379	In-memory cache

🚀 Quick Deploy & Usage Instructions

Pre-conditions for scripts

The prepare-app.sh and remove-app.sh scripts require the following conditions:

1. You must be authenticated to Azure via the Azure CLI (az login).
2. You must have an active "Azure for Students" (or Pay-As-You-Go) subscription.
3. The .env file must exist and contain the required variables (specifically POSTGRES_PASSWORD).
4. The system running the script must have ssh and scp installed.

Deployment Steps

# 1. Login to Azure
az login

# 2. Clone the repository
git clone git@git.kemt.fei.tuke.sk:gs699he/zkt26.git
cd zkt26/sk1

# 3. Configure environment
cp env.example .env
nano .env    # Set POSTGRES_PASSWORD

# 4. Deploy (Fully automated, no web GUI interaction required)
./prepare-app.sh

How to View and Use the Application

1. Open a web browser.
2. Navigate to the HTTPS URL provided at the end of the deployment script (e.g., https://taskmanager-gs699he.swedencentral.cloudapp.azure.com).
3. You will see the Task Manager interface where you can add new tasks, mark them as complete, and delete them. The HTTPS certificate is automatically negotiated and secured.

🗑️ Remove (after exam)

./remove-app.sh    # Deletes entire resource group (VM, IP, disk)

💾 Backup & Access Logs

How to Perform a Data Backup

You can backup the database from the cloud server to your local machine by running:

./backup-db.sh

This script securely connects to the VM, executes pg_dump, and downloads a .sql backup file to your local backups/ folder.

How to View Access Records from the Internet

To view the HTTP/HTTPS access logs of traffic coming from the internet, run the following script:

./view-logs.sh --caddy

This securely fetches the proxy logs from the Caddy container, showing IP addresses, request paths, and HTTP statuses.

📁 Project Structure & Uploaded Files

• prepare-app.sh: Shell script for automatically provisioning the Azure VM, opening ports, installing Docker, uploading files, and starting all services.
• remove-app.sh: Shell script to completely delete the Azure Resource Group, eliminating the application and all associated costs.
• backup-db.sh: Script to connect to the running database container via SSH and download a .sql backup.
• view-logs.sh: Script to securely read Docker container logs (including internet access logs) from the Azure VM.
• docker-compose.yaml: The main configuration file defining the 5-container architecture, networking, and volumes.
• cloud-init.yaml: Cloud-init configuration used by Azure during VM creation to automatically install Docker.
• env.example: Template for environment configuration.
• api/: Contains the Node.js backend source code (server.js, db.js), package.json, and the Dockerfile for the API container.
• frontend/: Contains the static web files (index.html, style.css, app.js), Nginx reverse-proxy configuration (nginx.conf), and the Dockerfile.
• caddy/Caddyfile: Configuration for the Caddy web server to handle reverse-proxying and automatic TLS/HTTPS.
• db/init.sql: SQL script containing the initial database schema to create the tasks table.

⚙️ Configuration Description

The application relies completely on file-based and environment-based configuration:

• Environment Variables (.env): Used to configure database passwords, hostnames, and Azure deployment parameters (Location, VM Size, DNS). Secrets are injected dynamically and excluded from Git.
• Docker Compose (docker-compose.yaml): Declares container dependencies, restart policies (restart: always), and volume mounts.
• Nginx & Caddy configs: Define routing rules without requiring manual web interface interaction.

Variable	Description
POSTGRES_PASSWORD	Database password (Secret, not in git)
AZURE_RESOURCE_GROUP	Azure resource group (taskmanager-rg6)
AZURE_LOCATION	Azure region (swedencentral)
AZURE_VM_SIZE	VM size (Standard_B2ts_v2)
AZURE_DNS_LABEL	DNS label for public URL

💰 1-Year Cost Analysis (1000 users/day & 50GB Database)

If the application scales to 1,000 daily users and requires 50 GB of persistent storage, the infrastructure costs for one year of operation on Azure are calculated as follows:

Cloud Resource	Price / Billing Interval	Total Annual Cost
Azure VM (Standard_B2ts_v2)	~$14.16 / month	$169.92
Disk (64 GB Premium SSD P6)	~$9.60 / month	$115.20
Public IPv4 Address	~$3.00 / month	$36.00
Bandwidth (Data Transfer Out)	First 100 GB/month is Free. 1000 users × 1MB = 1GB/day ≈ 30 GB/month.	$0.00
TLS/SSL Certificates (Let's Encrypt)	Free	$0.00
Total Estimated Cost		~$321.12 / year

🔒 Security

• HTTPS enforced (Caddy + Let's Encrypt)
• Databases on isolated Docker network (backend-net)
• Secrets via .env (gitignored)
• Security headers in Nginx
• Auto-restart on failure

🤖 External Resources & Generative AI Usage

• Google Antigravity (Gemini 2.5 Pro): Used via the Deepmind MCP IDE integration as a pair-programming assistant.
• Method of Use: The generative model was used to rapidly scaffold the docker-compose.yaml, generate the architecture diagram, scaffold shell scripts (prepare-app.sh, backup-db.sh), and write the LaTeX report structure.
• Verification: All outputs were thoroughly reviewed, manually tested, and adjusted to guarantee security and strict compliance with assignment requirements. No sensitive API keys or credentials were sent to or generated by the AI in a public context.

---

Technical University of Košice — KEMT FEI — Cloud Technologies — 2026
