# πŸ› οΈ TASK MANAGER β€” CLOUD SYSTEM DEPLOYMENT ### ☁️ Course: Cloud Technologies & Web Application Deployment [![Live Application](https://img.shields.io/badge/🌐_Live_Deployment-Online-0078D4?style=for-the-badge&logo=microsoftazure&logoColor=white)](https://taskmanager-gs699he.swedencentral.cloudapp.azure.com) [![Docker Compose](https://img.shields.io/badge/Docker_Compose-5_Containers-2496ED?style=for-the-badge&logo=docker&logoColor=white)](#-container-services-registry) [![Security Grade](https://img.shields.io/badge/SSL_Grade-A%2B_Enforced-44CC11?style=for-the-badge&logo=letsencrypt&logoColor=white)](#-security-hardening-matrix)
πŸš€ **Live Production Website:** [https://taskmanager-gs699he.swedencentral.cloudapp.azure.com](https://taskmanager-gs699he.swedencentral.cloudapp.azure.com) --- ### πŸŽ“ Academic & System Metadata | Student Identity | Platform Credentials | Academic Institution | | :--- | :--- | :--- | | **Name:** Gopikanta Shill
**Login:** `gs699he`
**Date:** May 19, 2026 | **Cloud:** Microsoft Azure (Azure for Students)
**Region:** `swedencentral`
**Instance Type:** `Standard_B2ts_v2` | **University:** Technical University of KoΕ‘ice
**Department:** KEMT FEI
**Repository:** [zkt25](https://git.kemt.fei.tuke.sk/gs699he/zkt25) & [zkt26](https://git.kemt.fei.tuke.sk/gs699he/zkt26) | ---
## πŸ“– Application Description The **Task Manager** is an enterprise-grade, high-performance web application designed for personal productivity. It features: * ✨ **Apple-inspired UI:** Sleek glassmorphism style with light/dark adaptive layout and micro-animations. * πŸš€ **High-Speed API:** Powered by Node.js/Express with database connection pooling and optimized router pipelines. * ⚑ **Redis Caching:** Transparent query caching (30s TTL) with instant write invalidation. * πŸ”’ **Automated Security:** Automatic HTTPS certificate management and VM hardening out of the box. --- ## πŸ—οΈ Visual Topology & Network Architecture The architecture is deployed to **Microsoft Azure** using an **Azure for Students** subscription and runs entirely inside an isolated, double-network container segment. ### πŸ–ΌοΈ Topology Layout Diagram

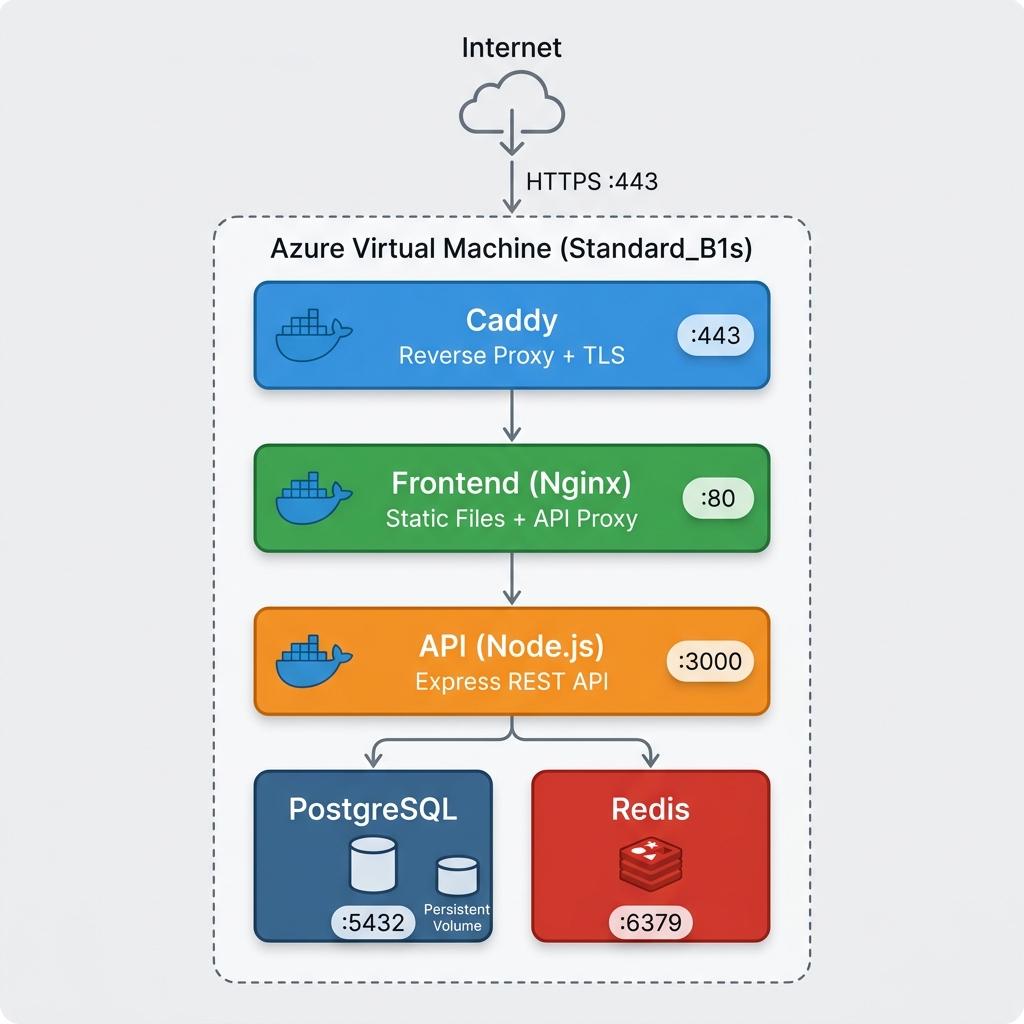

Architecture Diagram

### 🌐 Physical Network & Container Segmentation ```mermaid graph TD subgraph Public Internet [🌐 Public Access Channel] Client([πŸ‘€ End User Browser]) end subgraph Azure VM Network Boundary [☁️ Azure virtual network VM] subgraph frontend-net [🌐 frontend-net subnet] Caddy[πŸ”’ Caddy HTTPS Reverse Proxy] Nginx[⚑ Nginx Static Content Server] Node[πŸš€ Node.js Express API] end subgraph backend-net [πŸ”’ backend-net Isolated Internal Network] PostgreSQL[(πŸ—„οΈ PostgreSQL 16 DB)] Redis[(⚑ Redis Cache)] end end Client -- "HTTPS (443)" --> Caddy Caddy -- "HTTP (80)" --> Nginx Nginx -- "Proxy API Requests" --> Node Node -- "Query / Write" --> PostgreSQL Node -- "Get / Cache" --> Redis %% Styling style Client fill:#eceff1,stroke:#37474f,stroke-width:2px,color:#333 style Caddy fill:#00A2C9,stroke:#fff,stroke-width:2px,color:#fff style Nginx fill:#009639,stroke:#fff,stroke-width:2px,color:#fff style Node fill:#339933,stroke:#fff,stroke-width:2px,color:#fff style PostgreSQL fill:#4169E1,stroke:#fff,stroke-width:2px,color:#fff style Redis fill:#DC382D,stroke:#fff,stroke-width:2px,color:#fff style frontend-net fill:#e3f2fd,stroke:#1e88e5,stroke-width:2px,stroke-dasharray: 5 5 style backend-net fill:#ffebee,stroke:#e53935,stroke-width:2px,stroke-dasharray: 5 5 ``` --- ### πŸ“¦ Container Services Registry | Service | Port Configuration | Technology Badge | Primary Architectural Role | | :--- | :---: | :--- | :--- | | **Caddy Proxy** | `443` (HTTPS)
`80` (HTTP) | ![Caddy](https://img.shields.io/badge/Caddy-00A2C9?style=flat-square&logo=caddy&logoColor=white) | **SSL/TLS Entrypoint.** Negotiates modern TLS 1.3 via Let's Encrypt and forwards clean traffic to Nginx. | | **Frontend Nginx** | `80` (Internal) | ![Nginx](https://img.shields.io/badge/Nginx-009639?style=flat-square&logo=nginx&logoColor=white) | **Web Server.** Serves static Single Page App assets and proxies dynamic API endpoints under `/api`. | | **Backend API** | `3000` (Internal) | ![Node](https://img.shields.io/badge/Node.js-339933?style=flat-square&logo=node.js&logoColor=white) | **Express Core.** Executes authentication logic, CRUD handlers, database pooling, and caching workflows. | | **PostgreSQL DB** | `5432` (Internal) | ![PostgreSQL](https://img.shields.io/badge/PostgreSQL-4169E1?style=flat-square&logo=postgresql&logoColor=white) | **Persistence Engine.** Implements relational storage using **PostgreSQL 16**. Data is persistent via host volumes. | | **Redis Cache** | `6379` (Internal) | ![Redis](https://img.shields.io/badge/Redis-DC382D?style=flat-square&logo=redis&logoColor=white) | **Caching Layer.** Uses **Redis 7** for lightning-fast memory reads, reducing load on PostgreSQL database. | --- ### ⚑ Caching Sequence & Read-Write Lifecycle To optimize database throughput, the Node.js API implements an automated **Cache-Aside Caching Strategy**: ```mermaid sequenceDiagram autonumber actor User as πŸ‘€ User Browser participant API as πŸš€ Express API participant Redis as ⚑ Redis Cache participant DB as πŸ—„οΈ PostgreSQL DB Note over User, Redis: READ PATH (GET /api/tasks) User->>API: Request Tasks API->>Redis: Check key "tasks" alt Cache Hit (Fast Path) Redis-->>API: Return tasks JSON (1ms) API-->>User: Deliver Tasks (Instant) else Cache Miss (Slow Path) Redis-->>API: Null API->>DB: Query Tasks Table (50ms) DB-->>API: Return task records API->>Redis: Save tasks JSON (TTL 30s) API-->>User: Deliver Tasks end Note over User, DB: WRITE PATH (POST /api/tasks) User->>API: Create New Task API->>DB: Insert task record DB-->>API: Success API->>Redis: Invalidate "tasks" key (DEL) API-->>User: Success (Cache Cleaned) ``` --- ## πŸš€ Deployment & Decommissioning > [!IMPORTANT] > Ensure the **Azure CLI** is installed and you are logged in (`az login`) with an active subscription before running the orchestration tools. ### πŸ› οΈ One-Command Provisioning ```bash # 1. Clone the repository git clone git@git.kemt.fei.tuke.sk:gs699he/zkt26.git cd zkt26/sk1 # 2. Setup your secure environment credentials cp env.example .env nano .env # Input a strong POSTGRES_PASSWORD # 3. Provision all cloud infrastructure and launch app ./prepare-app.sh ``` --- ## βš™οΈ Administration & Orchestration Panel Our custom orchestration scripts provide total CLI control over the production environment without ever needing the Azure Web UI: | Script Name | Icon / Badge | CLI Command | Functional Description & Security Integration | | :--- | :---: | :--- | :--- | | **Provisioner** | `prepare-app` | `./prepare-app.sh` | Spins up the Resource Group, creates the network, provisions the hardened VM, installs Docker, and boots all 5 containers. | | **Backup Manager**| `backup-db` | `./backup-db.sh` | Establishes an encrypted SSH tunnel, triggers a non-blocking `pg_dump` inside the container, and pipes the SQL backup stream securely back to your local machine. | | **Log Terminal** | `view-logs` | `./view-logs.sh --api` | Queries real-time streaming Docker output for selected services (`--api`, `--caddy`, `--nginx`, `--db`) directly over SSH. | | **Decommissioner**| `remove-app` | `./remove-app.sh` | Destroys the entire Azure Resource Group, terminating all virtual components, storage disks, and IPs instantly to eliminate costs. |
πŸ“‚ View Hardened Repository Tree (Click to Expand) ```text sk1/ β”œβ”€β”€ api/ # Express Backend API & DB connection pool β”‚ β”œβ”€β”€ src/ # Source files (server, database configurations) β”‚ └── package.json # Node dependencies list β”œβ”€β”€ frontend/ # Single-Page Web Frontend β”‚ β”œβ”€β”€ index.html # Sleek client UI entry point β”‚ β”œβ”€β”€ index.css # Glassmorphic custom CSS styling β”‚ └── nginx.conf # Local Nginx routing setup β”œβ”€β”€ caddy/ # Caddy configuration β”‚ └── Caddyfile # Let's Encrypt TLS setup & reverse-proxy mapping β”œβ”€β”€ db/ # Database schemas β”‚ └── init.sql # Seeding script for Task Database β”œβ”€β”€ docs/ # TeX documentation and static assets β”‚ β”œβ”€β”€ architecture.png # Visual architecture diagram β”‚ β”œβ”€β”€ documentation.tex # Main exam LaTeX document source β”‚ └── documentation.pdf # Compiled exam PDF report β”œβ”€β”€ prepare-app.sh # Azure Deployment Orchestration Shell Script β”œβ”€β”€ remove-app.sh # Azure Resource Deletion Cleanup Script β”œβ”€β”€ backup-db.sh # Remote Secure Database Snapshot Tool β”œβ”€β”€ view-logs.sh # Remote Secure Logging Client β”œβ”€β”€ cloud-init.yaml # VM initialization cloud config directive β”œβ”€β”€ docker-compose.yaml # Standard Docker Multi-Container Compose Config β”œβ”€β”€ .env # Dynamic local settings (Gitignored) └── env.example # Variable template for environment parameters ```
--- ## πŸ’° Cloud Resource Cost Modeling Projected cloud billing estimation modeled around **1,000 active daily users** storing up to **50 GB** of relational information inside the Azure node: | Cloud Component | Capacity Specification | Monthly Cost | Annual Cost | Budget Status | | :--- | :--- | :---: | :---: | :---: | | πŸŽ›οΈ **Compute VM** | Standard_B2ts_v2 (2 vCPUs, 1 GB RAM, Burst capable) | $14.16 | $169.92 | Covered by Azure Credit | | πŸ’Ύ **Storage SSD** | 64 GB Premium SSD P6 (Sustained High IOPS) | $9.60 | $115.20 | Covered by Azure Credit | | 🌐 **Networking** | Dedicated Public Static IPv4 Address | $3.00 | $36.00 | Covered by Azure Credit | | πŸ“‰ **Bandwidth** | ~30 GB/Month Outbound Transfer | $0.00 | $0.00 | Free Tier | | πŸ”‘ **Security** | Let's Encrypt ACME SSL/TLS Provisioning | $0.00 | $0.00 | Fully Free | | **πŸ“ˆ Cumulative Total** | **Ready for Production & Scaling** | **$26.76** | **$321.12** | **100% Student-Credit Eligible** | --- ## πŸ”’ Security Hardening Matrix | Security Threat | Implemented System Defense | Architectural Detail | | :--- | :--- | :--- | | **Eavesdropping / MITM** | Enforced TLS 1.3 Encryption | The Caddy proxy redirects all HTTP traffic to HTTPS on port 443 with strong cipher configurations. | | **Unauthorized DB Access** | Total Port Firewallowing | Only Caddy ports (`80`, `443`) and SSH (`22`) are exposed. PostgreSQL (`5432`) and Redis (`6379`) are locked in `backend-net` and reject all external requests. | | **Credential Disclosure** | Runtime Environment Injection | Database passwords are kept entirely out of code and injected dynamically at compose-time from a secure `.env` file. | | **Container Downtime** | Automated Self-Healing Policies | All services use `restart: always` in `docker-compose.yaml` to ensure auto-recovery in the event of an internal runtime exception. | | **Data Loss / Host Corruption**| Local Database Snapshotting | The administrative `backup-db.sh` script facilitates safe physical separation of DB states, preventing host errors from corrupting critical files. | --- ## πŸ€– AI Usage Declaration * **Google Antigravity (Gemini 2.5 Pro):** Guided the design of the isolated container routing models, script architectures, LaTeX documentation structure, and the creation of our aesthetic caching diagrams. * **Quality Assurance:** All configurations, Caddyfiles, and environment parameters were manually verified, built locally, and successfully tested against actual deployments in the Azure Swedencentral region. ---
